Gateway - Browan Outdoor Gateway
Gateway - Browan Outdoor Gateway

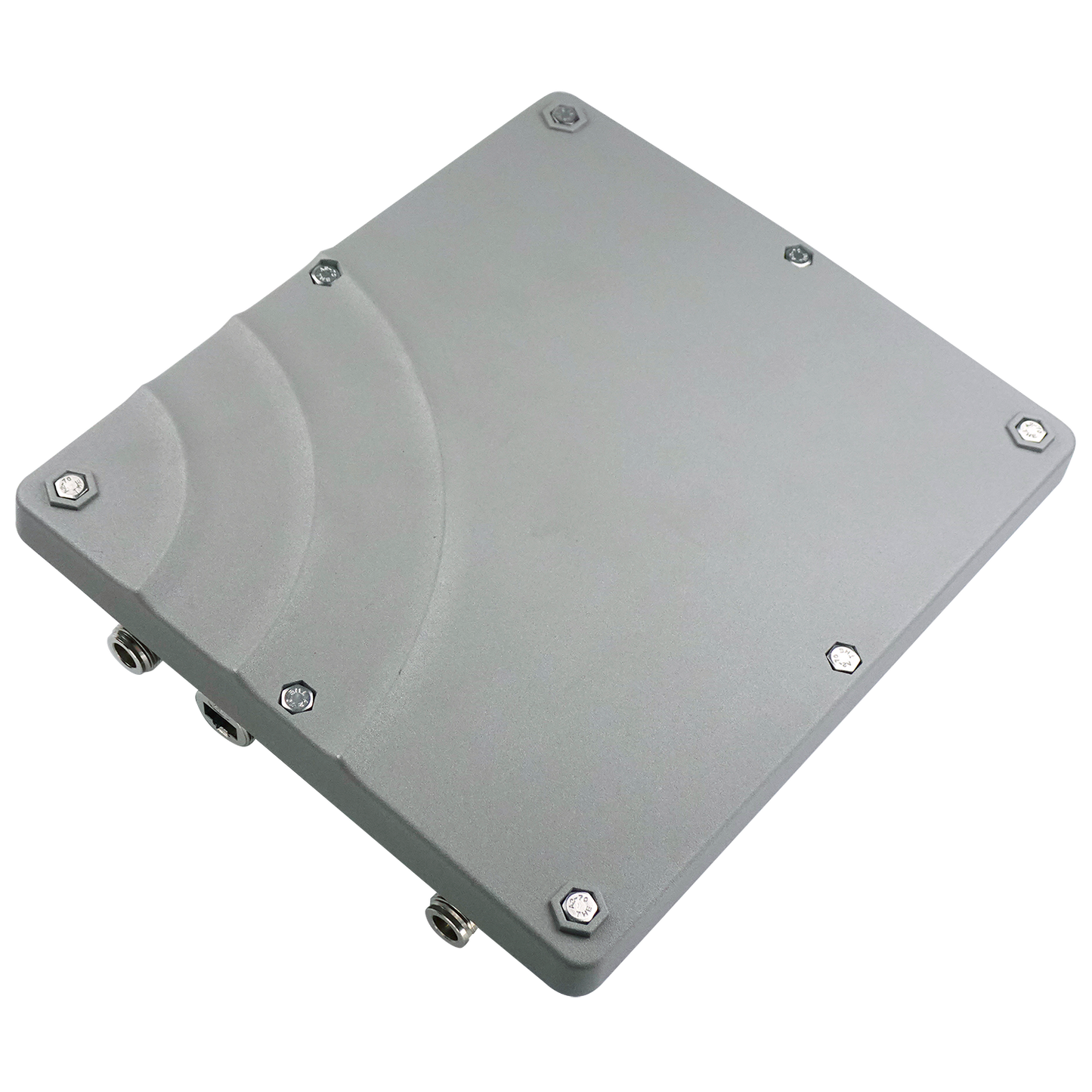

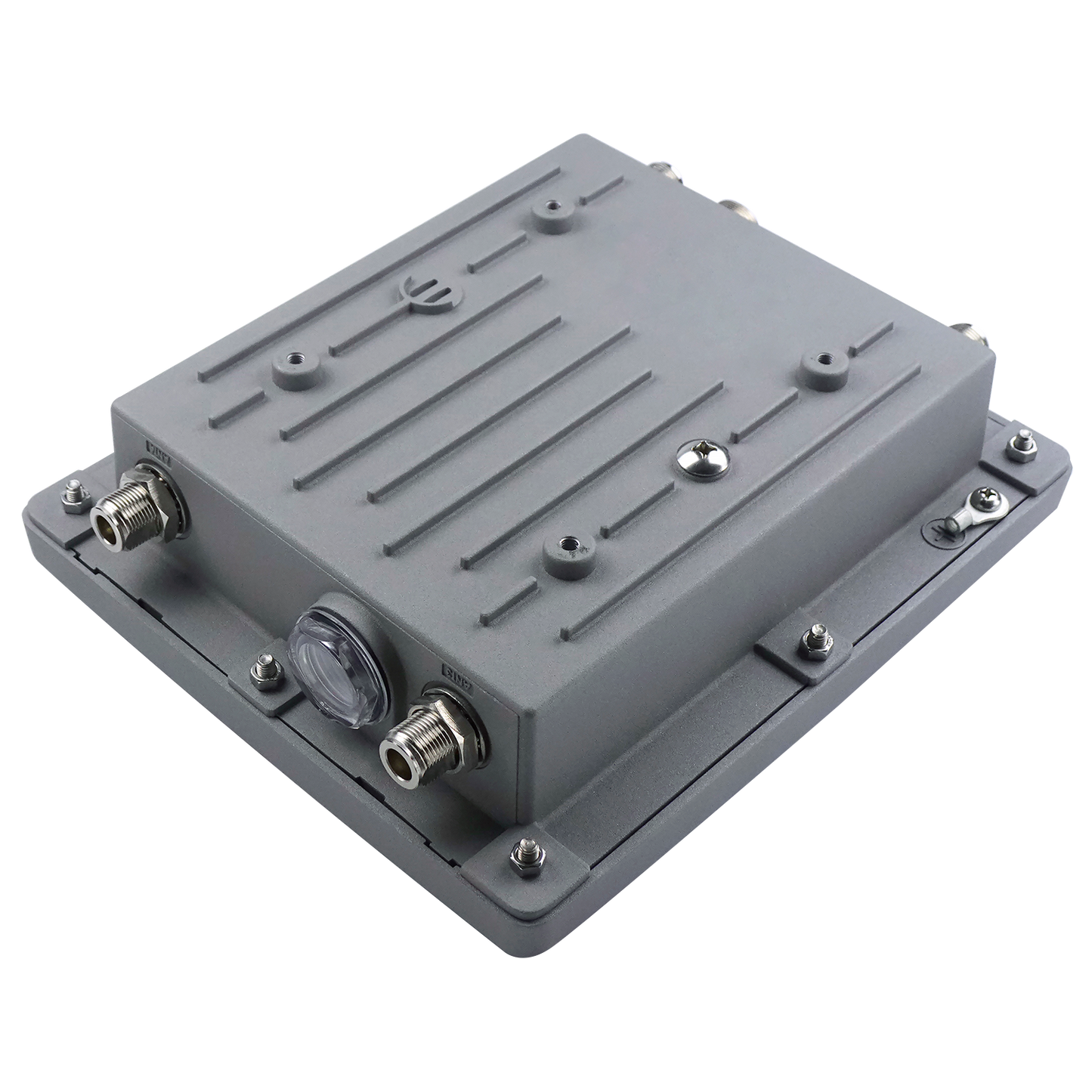

Browan has been instrumental in the development of LPWAN system solutions and is an early provider of LoRaWAN protocol-based, end-to-end LPWAN solutions. The LoRaWAN technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long range, high penetration and high sensitivity capabilities, it is a much more cost-effective way for service providers to deploy LoRaWAN network for tracking applications than to use GPRS network. The Micro Gateway is specifically designed for wide area smart city applications. Applications include, but not limited to automatic meter reading, monitoring fault indicators, monitoring streetlights, etc. Typical deployment is using star network configuration similar to mobile network base station. This product can be configured as last mile repeater to solve sensor connectivity issue when sensor is located at edge of the coverage or out of coverage. It’s a cost-effective way to provide full redundancy coverage for the entire service area.
Features:
- AU 915 ISM Band
- Compliance with LoRaWAN 1.0.3
- Option between 8 or 16 channels
- Option for 3G/4G backhaul
- Long range over 15 kilometres radius
- 1 LAN port (10/100Mbps) with PoE
- Downlink LBT (Listen Before Talk)
- Supports background scan
- Cloud service to support easy deployment
- Provides full redundancy coverage
- IP67
- Ubuntu OS
- VIEW PDF
