FluxNode - SenseCAP M4 Square

FluxNode - SenseCAP M4 Square

Regular price $199.00 USD
Regular price Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

SenseCAP M4 Square is a plug and play FluxNode powered by FluxOS that supports potential extension for other web3.0 dAPPs.

FluxOS is a revolutionary second-layer operating system that allows hardened dockerized apps to run on Flux’s fully decentralized computational network, making it highly resilient to both system failure and outside attempts of censorship. Powered by FluxOS, SenseCAP M4 Square provides easy and friendly methods to deploy CUMULUS FluxNode with SenseCAP Hotspot App.

Features

  • Plug and Play: Provide a no code experience that enables users to finish deployment CUMULUS FluxNode with 4 steps.
  • Support Multiple Apps: Deploy multiple applications provided by SenseCAP from the dApp center. The first App is Flux, more Apps coming soon.
  • Cloud Service: Provide a one-stop cloud service to help users purchase, deploy, manage, and monitor their devices.
  • Excellent Performance: Powered by Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz) with 4 cores and 4 threads. Built-in TPM2.0 cryptographic processor and ECC608 crypto chip, high-security authentication, and reliable connectivity.
  • Low Power Consumption: 10w low power consumption, 7.2 kWh per month, cost $1.008 per month (global average kWh price of $0.144/per kWh).

Plug and Play

SenseCAP M4 Square provides the easiest way to deploy the CUMULUS FluxNode. No Linux commands are required, No need to build an environment, and only 4 steps to finish deployment.

  • Step 1: Power up and connect to internet
  • Step 2: Install and login to the SenseCAP Hotspot App
  • Step 3: Connect the App to the SenseCAP M4 Square via Bluetooth
  • Step 4: Input FluxNode Info and start deploying, then the SenseCAP M4 Square will deploy the FluxNode automatically

Support Multiple Apps

SenseCAP M4 Square is a powerful extensible device. It’s a perfect device for deploying multiple applications. So SenseCAP team builds a dApp center to help users reduce the complexity of multi-application deployment. Users can quickly and easily install applications on SenseCAP M4 Square via SenseCAP Hotspot App. The first App is Flux, more Apps.

Cloud Service

One-stop cloud services include SenseCAP Hotspot App and SenseCAP Dashboard, which help users manage the entire lifecycle of devices: purchase devices, set up devices via Bluetooth, get comprehensive devices information, monitor device running status, contact tech support, and get the latest services and news provided by senseCAP.

High Security

To keep your precious data secure, SenseCAP M4 Square Built-in TPM2.0 cryptographic processor and ECC608 crypto chip protect devices from external software threats and physical theft.

Excellent Performance

Powered by the Intel® Celeron® J4125(Frequency: 2.0 - 2.7GHz) and combined with Raspberry pi@ RP2040 32bit Dual-core Arm Cortex M0+ to optimize the SenseCAP M4 Square performance. Excellent performance allows SenseCAP M4 Square to process multi-applications reliably and efficiently and provides higher EPS and faster disk write speed(DWS).

Low Power Consumption

SenseCAP M4 Square device power consumption is only 10W, 7*24 hours running only cost $12.61 per year. Users can deploy more devices with minimal power cost (global average kWh price of $0.144/per kWh).

Cancellation policy

SenseCAP M4 Square follows Non-Cancellable/Non-Returnable (“NCNR”) policy.


Specifications



Components



SenseCAP M4 Square



Processor



Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz)



Coprocessor



Raspberry pi@ RP2040 32bit Dual-core Arm Cortex M0+



Graphics



Intel® UHD Graphics 600 (Frequency: 250 – 750MHz)



Memory



LPDDR4 8GB



Storage



Internal 512GB SSD



Wireless



Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160



Networking



Intel®226-V PCIe2.5GbE LAN, Supports Wake-On-LAN, Supports PXE



Audio



Microphone + headphone Combo Connector



USB



USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1



Video Interfaces



HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a: Up to 4096x2160 @ 60Hz 24bpp



Expansion Slots



M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III



Operating temperature



0°C~45°C



Storage temperature



-20°C~60°C



TPM



Built-in TPM 2.0



Power



DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC

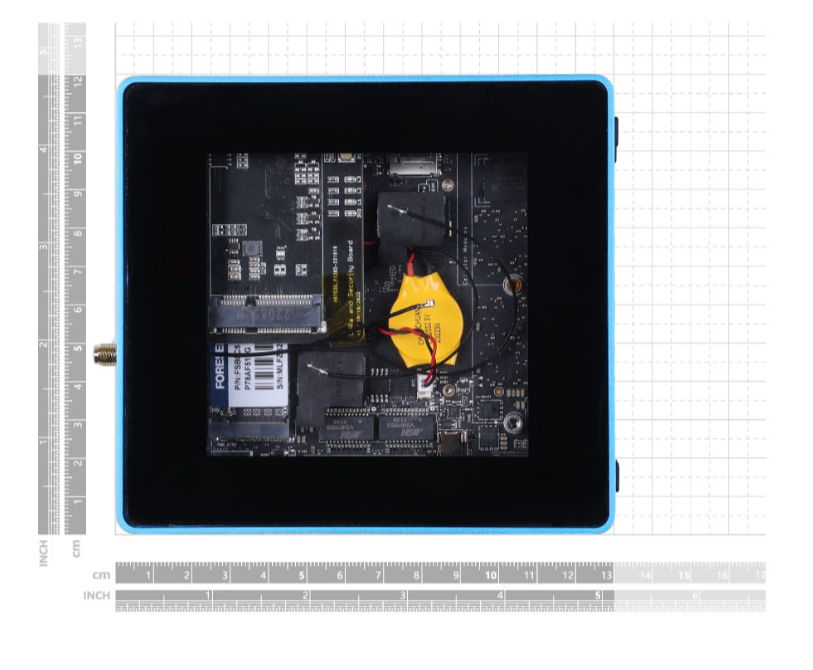

Dimensions



130x120x50mm



Certifications



FCC, CE

Hardware Overview

SenseCAP M4 Square runs at a Quad-core Intel® Celeron® J4125 and RP2040 co-processor, equipping dual 2.5GbE interfaces and multiple wireless connectivities, supporting 4K output, carrying sufficient storage capability, and equipment expandability.

Part List



SenseCAP M4 Square



1



User Manual



1



International Power Adapter



1



SenseCAP Sticker



2








ECCN/HTS

HSCODE 8517629900
USHSCODE 8517180050
UPC
EUHSCODE 8517180000
COO CHINA
CE 1
FCC 1
