Among the first launch of Seeed industrial IoT (IIoT) product series, SenseCAP is focusing on wireless environmental sensing applications: smart agriculture, precision farming, and smart city, to name a few. It consists of hardware products (sensors, data-loggers & gateways, etc.), software services (SenseCAP portal, mobile App, open dashboard), and API for device & data management.
Please send email to sensecap[at]seeed[dot]cc to request any technological support for this product.
Please choose the corresponding frequency according to regional regulation.
SenseCAP mobile APP and SenseCAP Portal are provided to enable easy and efficient provisioning and management of devices & data at scale.
SenseCAP API is provided to access data and devices for further development.
Here is a collection of SenseCAP LoRaWAN sensors for you to use with SenseCAP LoRaWAN Gateway seamlessly without extra workload for provisioning. It only takes you a few minutes to set up with this instruction.
If you want to add other LoRaWAN sensors, no problem at all. Please kindly refer to this document to connect any LoRaWAN sensors to SenseCAP LoRaWAN Gateway.
High-performance Cortex A8 1GHz processor, Linux system.
Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
Support multiple ISM bands: CN470, EU868, US915
Support multiple methods to access the network: 4G, Ethernet
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in the urban scene
Industrial grade protection: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications
Easy deployment, and rapid provisioning (see the "how to install" video below)
Other Wireless Sensing Applications
|Product Model||Long Range -G-868-E/4G|
|CPU||TI AM3358 Cortex-A8 1GHz|
|Long Range Power Output||25dBm|
|Long Range Sensitivity||-139.5dBm (SF12BW125)|
|Ethernet||100Mbps FE (RJ-45)|
Support non-CA Cat 4 FDD and TDD
LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)
Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
|Long Range Antenna||
2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector
0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector
|LED Indicator||Indicating network condition (online/ offline)|
|Grounding||Reserved 1 screw hole for GND|
|Power Supply||DC 12V/2A|
|UV Resistance||anti-aging (from rain/sun exposure): UL746C F1|
|Operating Temperature||-40 ℃ to +70 ℃|
|Operating Humidity||0 to 100 %RH (non-condensing)|
|Installation Method||Wall or pole mounting|

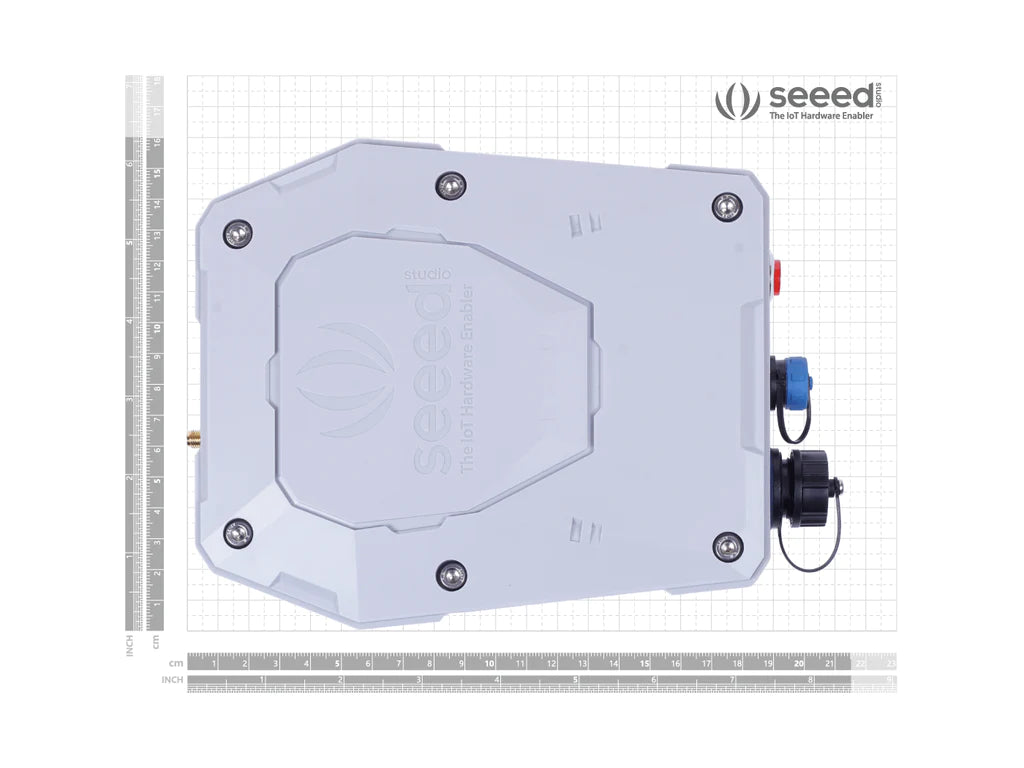

|Device Dimensions||256mm * 160mm * 81mm|
|Certification||CE, FCC, RoHS|
|1||Long Range Gateway||x1|
|2||Long Range Antenna||x1|
|4||Allen Hex Key||x1|
|7||Power Extension Cable (5M)||x1|
|8||Ferrules / Aluminum piece||x 2 / 2|
|9||M5 Self-drilling Screws||x8|
|1||Long Range Fiberglass Omni Antenna||x1|
|2||Antenna Lightning Protector||x1|
|3||Long Range Antenna Brackets||x1|
